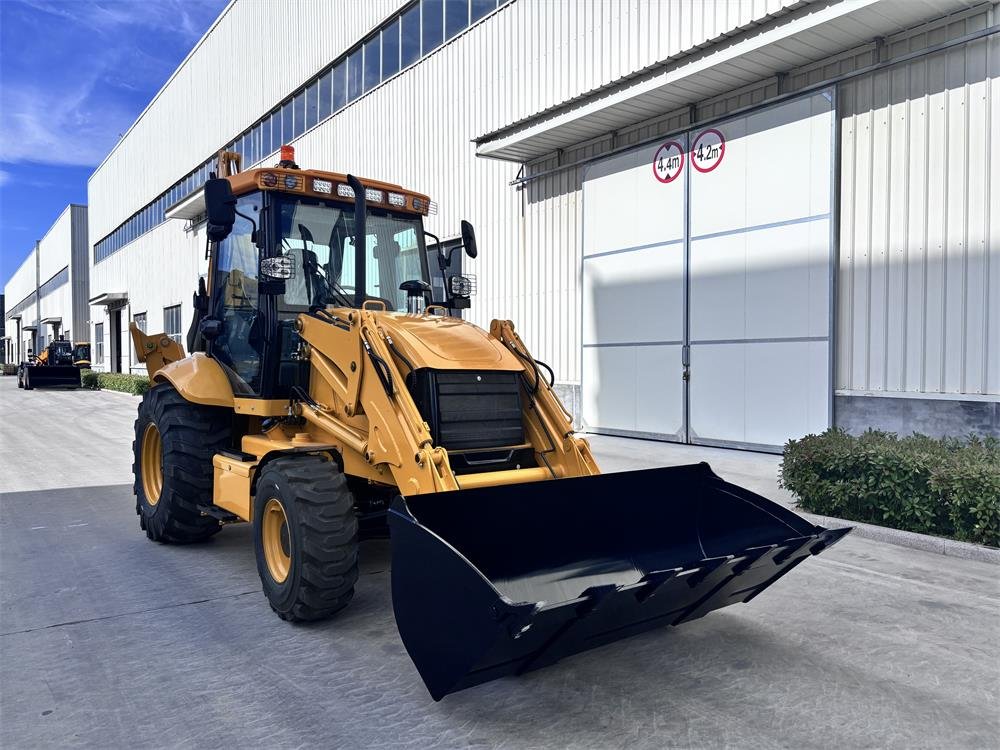

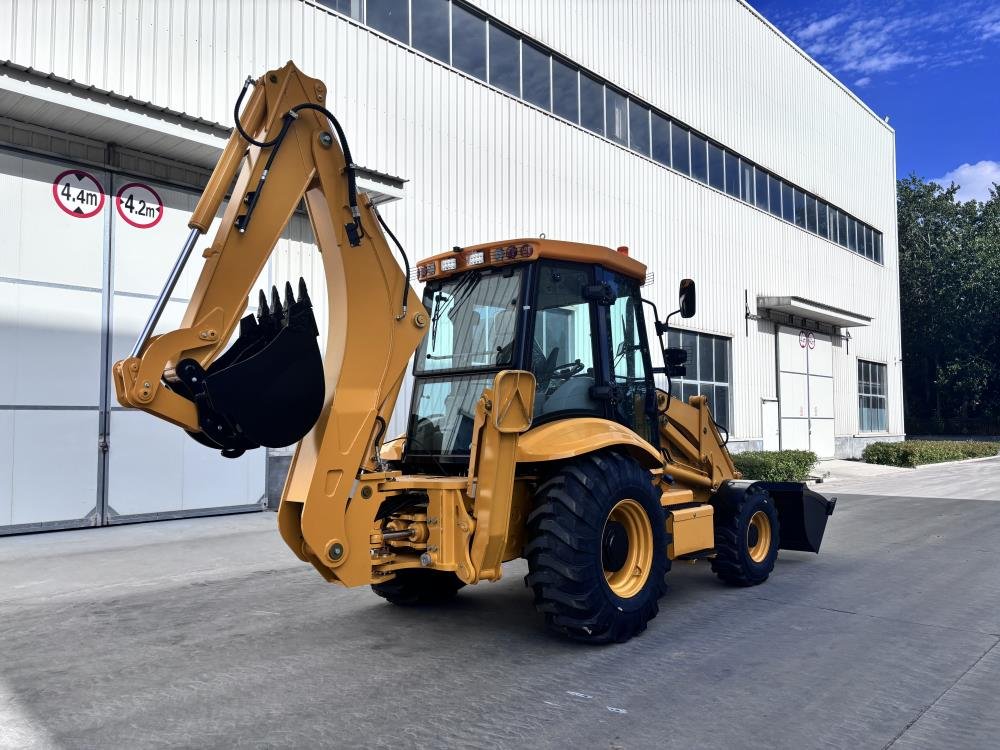

The 388 backhoe loader is a multipurpose construction machine developed for digging, loading, trenching, road maintenance and agricultural engineering.
It can be equipped with a Weichai engine, mechanical transmission, reinforced drive axles, pilot controls and optional H-type stabilizers. The floating front-bucket function assists with grading and surface leveling.
Multiple attachments, including hydraulic breakers, wood grabs, ditching buckets and trenchers, can be installed to expand the machine’s working range.
Front loader and rear excavator in one machine.
Optional H-type stabilizers.
Pilot hydraulic operating system.
Floating front-bucket function.
Multiple attachment compatibility.
Common components for easier overseas maintenance.
Maximum road speed of 39 km/h for flexible jobsite transfer.
Road maintenance, utility trenching, farm development, drainage construction, landscaping, small demolition, material loading, ditch cleaning and rural infrastructure.
| Item | Specification |
|---|---|
| Model | 388 |
| Operating weight | 8,200 kg |
| Front bucket capacity | 1.0 m³ |
| Loading lift capacity | 2,500 kg |
| Loading dumping height | 2,807 mm |
| Backhoe bucket capacity | 0.3 m³ |
| Maximum digging depth | 3,967 mm |
| Rated power | 75 kW |
| Rated speed | 2,200 rpm |
| Steering angle | ±39° |
| Final drive type | Double-reduction |
| Maximum speed | 39 km/h |
| Overall dimensions | 6,050 × 2,465 × 3,813 mm |
