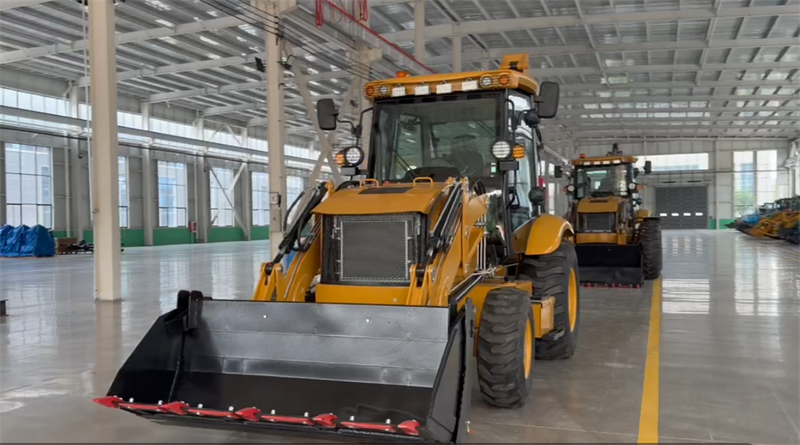

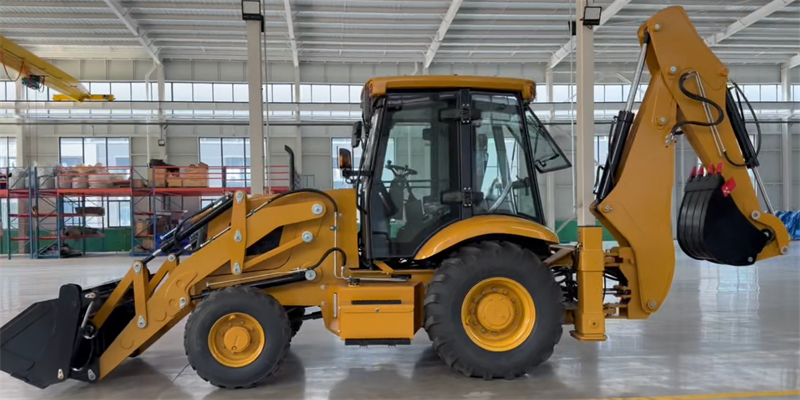

The 420D backhoe loader integrates a front loader and rear excavator into one compact machine. It is suitable for municipal projects, farms, utility construction, road maintenance, landscaping and small construction sites.
Its four-wheel-drive system and compact chassis provide good mobility on unpaved roads and restricted jobsites. The machine includes pilot controls for both the front loader and rear excavator, helping improve movement accuracy and operator comfort.
The standard configuration can include air conditioning, heating, a reversing camera, warning lights, an adjustable rotating seat and pre-installed hydraulic piping for a breaker.
Front loading and rear digging functions in one machine.
Four-wheel drive for improved jobsite mobility.
Pilot controls for loader and excavator operations.
Up to 5,100 mm optional digging depth.
Hydraulic breaker piping reserved as standard.
Air-conditioned cab with reversing camera.
Optional Cummins engine configuration.
Municipal pipeline construction, road maintenance, trenching, farm construction, irrigation channels, landscaping, small demolition, material loading and rural infrastructure.
| Item | Specification |
|---|---|
| Model | 420D |
| Operating weight | 7,500 kg |
| Front bucket capacity | 1.3 m³ |
| Loading lift capacity | 2,800 kg |
| Loading dumping height | 2,800 mm |
| Backhoe bucket capacity | 0.3 m³ |
| Maximum digging depth | 4,100 / 5,100 mm |
| Rated power | 85 kW |
| Rated speed | 2,200 rpm |
| Drive system | Four-wheel drive |
| Steering angle | ±36° |
| Maximum speed | 25 km/h |
| Overall dimensions | 7,600 × 2,260 × 2,980 mm |
