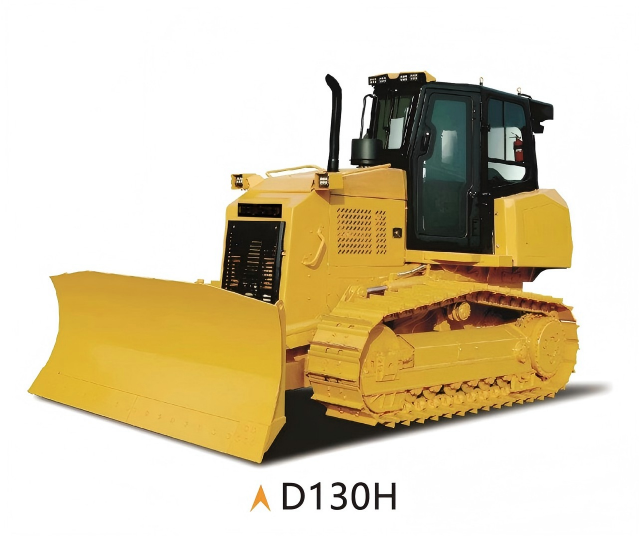

Bulldozer D130H
1.The hydrostatic drive system removes the need for torque converters, gearboxes, steering clutches and other parts. Standardized hydraulic pumps and motors experience nearly no wear during operation, ensuring superior reliability.
2.The high-drive structure keeps transmission components away from rocks and soil, preventing impact damage. It optimizes the working environment of transmission parts and extends their service life.
| Parameter | Specification |
|---|---|
| Model | D130H |
| Machine Type | Crawler Bulldozer |
| Operating Weight, Excluding Ripper | 13000 kg |
| Engine Brand | Cummins |
| Power (kw/ r/min) | 97/2000 |
| Minimum Ground Clearance (mm) | 315 |
| Climbing performance (°) | 30 |
| Track plate width (mm) | 510 |
| Chain rail pitch (mm) | 190 |
| Maximum traction force (KN) | 212 |
| Blade length x height (mm) | 3.1 |
| Max lifting height (mm) | 950 |
| Max digging depth (mm) | 460 |
| Fuel tank capacity (L) | 265 |
| Working fuel tank capacity (L) | 70 |
| Grounding length (mm) | 2640 |
| Ground Specific Pressure (MPa) | 0.045 |
| Minimum fuel consumption g/KW.h | 190 |
| L × W × H (mm) (without ripper) | 4922×3060×2999 |
