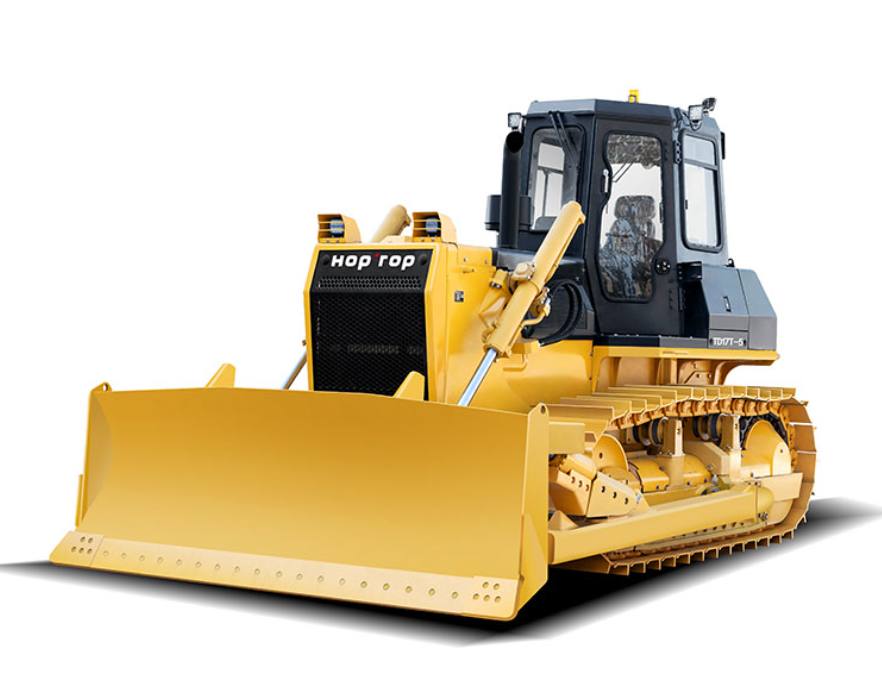

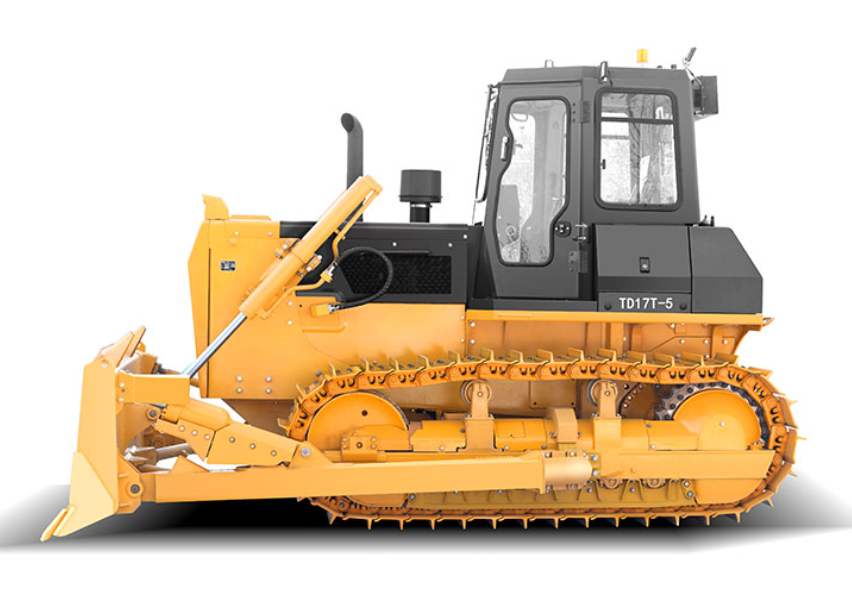

The TD17 Crawler Bulldozer is a reliable earthmoving machine developed for site preparation, road construction, land clearing, material pushing and general infrastructure projects.
It is powered by a Weichai WD10G178E25 engine that provides strong output, efficient combustion and convenient maintenance. The engine meets China Stage II emission requirements and is suitable for markets without highly restrictive emission regulations.
A mechanical high-pressure fuel injection system helps reduce fuel consumption while maintaining stable power output. The 315 L fuel tank supports longer working periods between refueling stops.
The planetary power-shift transmission, forced lubrication system and hydraulic-assisted steering provide easy operation and efficient power transfer.
The straight-tilt blade is suitable for grading, pushing soil and general earthmoving operations.
Road construction, land clearing, agriculture, mining support, municipal engineering, site grading, landfill operations and infrastructure development.
| Parameter | Specification |
|---|---|
| Model | TD17 |
| Machine Type | Crawler Bulldozer |
| Operating Weight, Excluding Ripper | 17,000 kg |
| Engine Model | Weichai WD10G178E25 |
| Rated Power | 131 kW |
| Rated Speed | 1,850 rpm |
| Minimum Fuel Consumption | 214 g/kW·h |
| Ground Contact Length | 2,430 mm |
| Maximum Gradeability | 30° |
| Track Shoe Width | 510 / 560 / 610 mm |
| Number of Track Rollers | 6 per side |
| Number of Carrier Rollers | 2 per side |
| Maximum Traction Force | 144 kN |
| Blade Type | Straight-Tilt Blade |
| Blade Capacity | 4.5 m³ |
| Maximum Blade Lifting Height | 1,095 mm |
| Maximum Blade Tilt | 400 mm |
| Fuel Tank Capacity | 315 L |
| Overall Dimensions | 4,990 × 3,450 × 3,190 mm |
