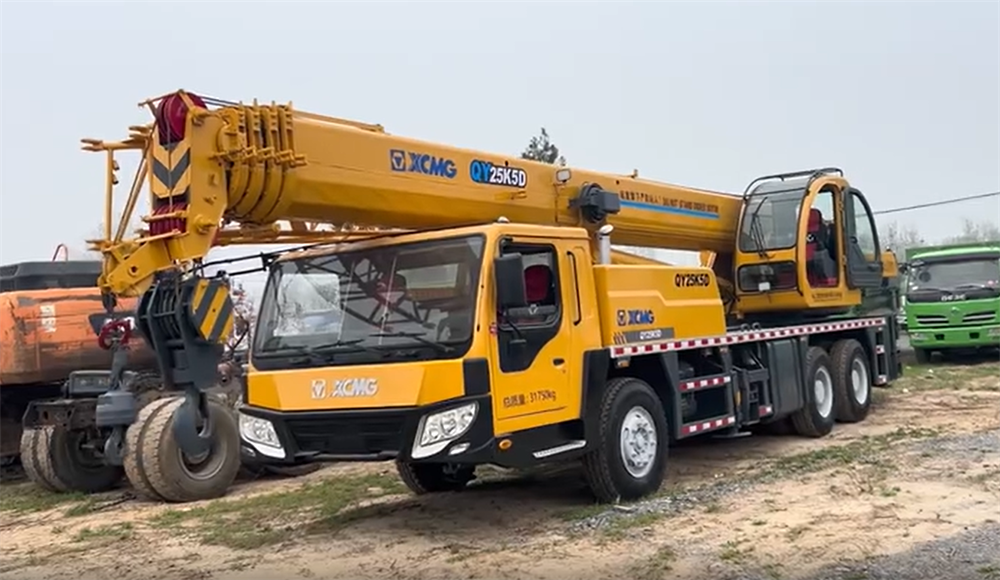

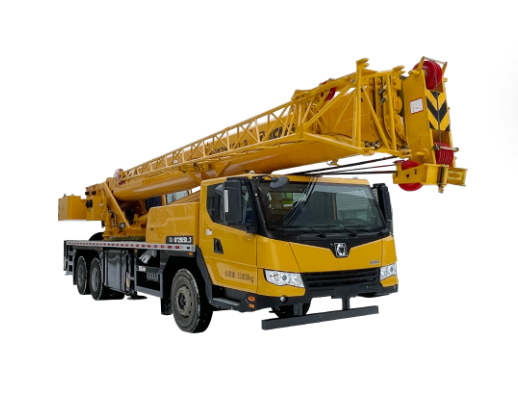

The XCMG QY25K5D truck crane is a 25-ton mobile lifting machine supplied through Ruimao’s construction machinery distribution channel.
The crane uses a high-strength torsion-resistant box structure and a full-coverage platform. Four H-type outriggers and an additional fifth outrigger provide support during lifting operations.
Its road-going carrier allows the crane to move between jobsites without requiring a separate transport trailer, making it suitable for municipal engineering, factory installation, building construction and equipment lifting.
Maximum rated lifting capacity of 25 tons.
Maximum basic-boom lifting moment of 1,063 kN·m.
Four H-type outriggers and a fifth supporting outrigger.
High-strength box-type structural design.
Three-person full-width carrier cab.
Air conditioning, adjustable driver’s seat and wide front visibility.
Maximum road speed of at least 80 km/h.
Building construction, equipment installation, municipal engineering, power projects, factory maintenance, logistics yards, infrastructure projects and general lifting operations.
| Item | Specification |
|---|---|
| Model | QY25K5D |
| Brand | XCMG |
| Maximum rated lifting capacity | 25 t |
| Minimum rated working radius | 3 m |
| Basic-boom maximum lifting moment | 1,063 kN·m |
| Basic-boom lifting height | 10.4 m |
| Maximum main boom and jib height | 47.4 m |
| Overall dimensions | 13,050 × 2,550 × 3,500 mm |
| Wheelbase | 4,600 + 1,350 mm |
| Maximum gross vehicle weight | 31,700 kg |
| Rated power | 220 kW at 2,200 rpm |
| Maximum speed | ≥80 km/h |
| Maximum gradeability | ≥40% |
