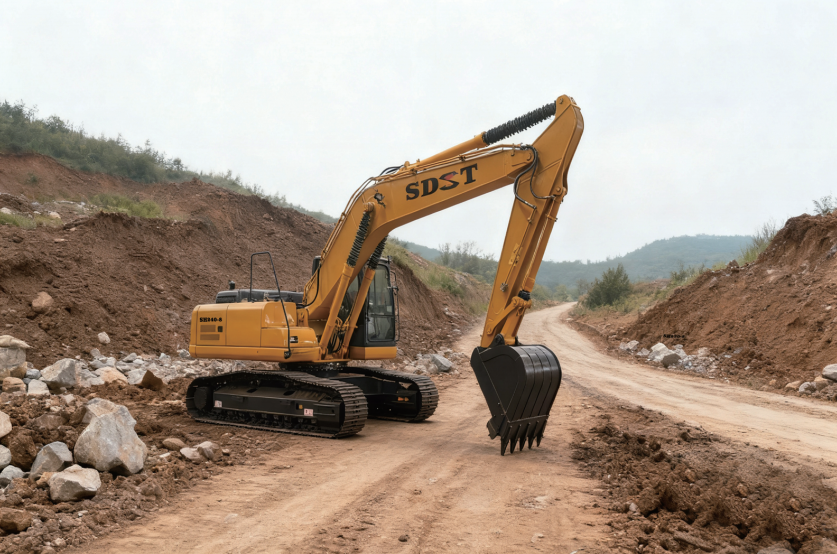

The SH240-8 hydraulic crawler excavator is a 23.5-ton construction machine developed for infrastructure construction, mining, municipal engineering, water conservancy and large-scale earthmoving projects.
Powered by a Cummins 6BTAA5.9 engine, the machine delivers 153 kW of rated power and strong low-speed torque. Its variable-displacement hydraulic system provides smooth compound movements, accurate control and efficient digging performance.
With a 0.9–1.3 m³ bucket, reinforced working equipment and a stable crawler undercarriage, the SH240-8 provides a practical balance between digging capacity, fuel efficiency, mobility and operating cost.
Infrastructure earthmoving, road construction, foundation excavation, municipal pipelines, mining, quarry loading, river dredging, farmland improvement and water conservancy construction.
| Item | Specification |
|---|---|
| Model | SH240-8 |
| Operating weight | 23,500 kg |
| Engine | Cummins 6BTAA5.9 |
| Rated power | 153 kW at 2,200 rpm |
| Maximum torque | 870 N·m at 1,400 rpm |
| Bucket capacity | 0.9–1.3 m³ |
| Overall dimensions | 9,625 × 2,980 × 3,075 mm |
| Travel speed | 5.1 / 3.1 km/h |
| Swing speed | 11.4 rpm |
| Gradeability | 70% / 35° |
| Ground pressure | 49.8 kPa |
| Maximum digging height | 10,095 mm |
| Maximum dumping height | 7,190 mm |
| Maximum digging depth | 6,490 mm |
| Maximum vertical digging depth | 5,915 mm |
| Maximum digging reach | 9,860 mm |
| Minimum swing radius | 2,970 mm |
| Maximum hydraulic flow | 2 × 224 L/min |
| Working pressure | 34.3 MPa |
| Fuel tank | 330 L |
| Hydraulic tank | 250 L |
| Track shoe width | 600 mm |
| Ground clearance | 470 mm |
