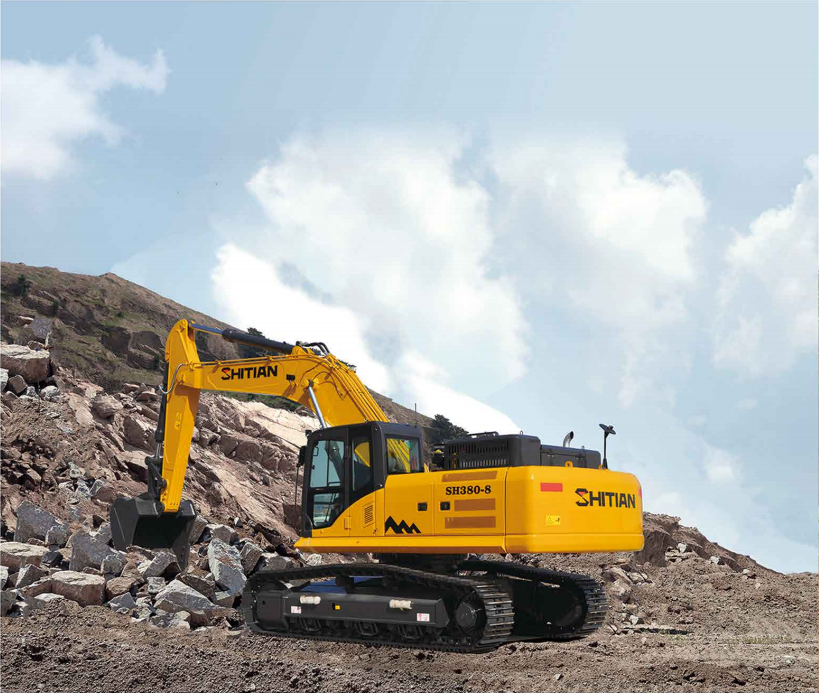

The SH380-8 heavy-duty crawler excavator is designed for open-pit mining, quarrying, large infrastructure earthworks, material loading and heavy excavation.
With an operating weight of 37,000 kg, a 242 kW Cummins engine and a 1.62–1.82 m³ heavy-duty bucket, the machine provides strong digging force and high production capacity for continuous working conditions.
The reinforced boom, arm, bucket and undercarriage improve resistance to impact and structural deformation. Its Kawasaki hydraulic system supports fast response, smooth combined movements and efficient power distribution.
Open-pit mines, quarries, coal mines, bulk earthworks, rock excavation, mining overburden removal, aggregate loading, road construction and large infrastructure projects.
| Item | Specification |
|---|---|
| Model | SH380-8 |
| Operating weight | 37,000 kg |
| Rated power | 242 kW at 2,100 rpm |
| Bucket capacity | 1.62–1.82 m³ |
| Overall dimensions | 11,161 × 3,200 × 3,347 mm |
| Track wheelbase | 4,080 mm |
| Track length | 5,044 mm |
| Overall crawler width | 3,200 mm |
| Travel speed | 5.0 / 3.0 km/h |
| Swing speed | 9.7 rpm |
| Bucket digging force | 220 kN |
| Maximum traction force | 330 kN |
| Fuel tank | 580 L |
| Hydraulic oil tank | 380 L |
| Engine oil capacity | 33 L |
