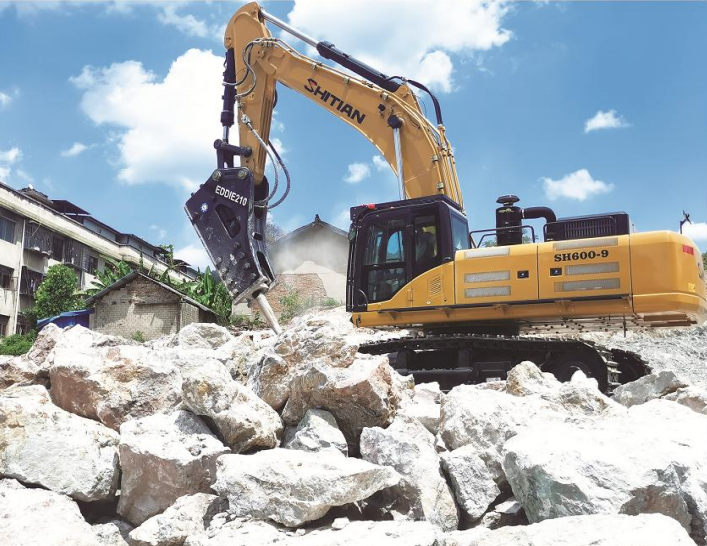

The SH600-9 large mining excavator is designed for open-pit mines, large quarries, bulk earthmoving and cross-border infrastructure projects requiring high production capacity.
The machine has an operating weight of 56,000 kg and is positioned in the 60-ton excavator class. It is powered by a 298 kW Cummins engine and can be equipped with a 2.5–3.58 m³ bucket.
Reinforced working equipment, cast-steel structural components and an integrated heavy-duty design improve durability during long working shifts and repeated high-load excavation.
Open-pit mining, quarry excavation, mine overburden removal, bulk material loading, large road projects, dam construction, foundation excavation and heavy earthmoving.
| Item | Specification |
|---|---|
| Model | SH600-9 |
| Machine class | 60-ton class |
| Operating weight | 56,000 kg |
| Rated power | 298 kW at 1,800 rpm |
| Bucket capacity | 2.5–3.58 m³ |
| Overall dimensions | 10,252 × 3,718 × 4,308 mm |
| Track length | 5,487 mm |
| Track shoe width | 600 mm |
| Travel speed | 6.1 / 3.55 km/h |
| Gradeability | 70% / 35° |
| Bucket digging force | 271 kN |
| Maximum traction force | 349 kN |
| Fuel tank | 630 L |
| Hydraulic oil capacity | 490 / 610 L |
| Engine oil capacity | 38 L |
