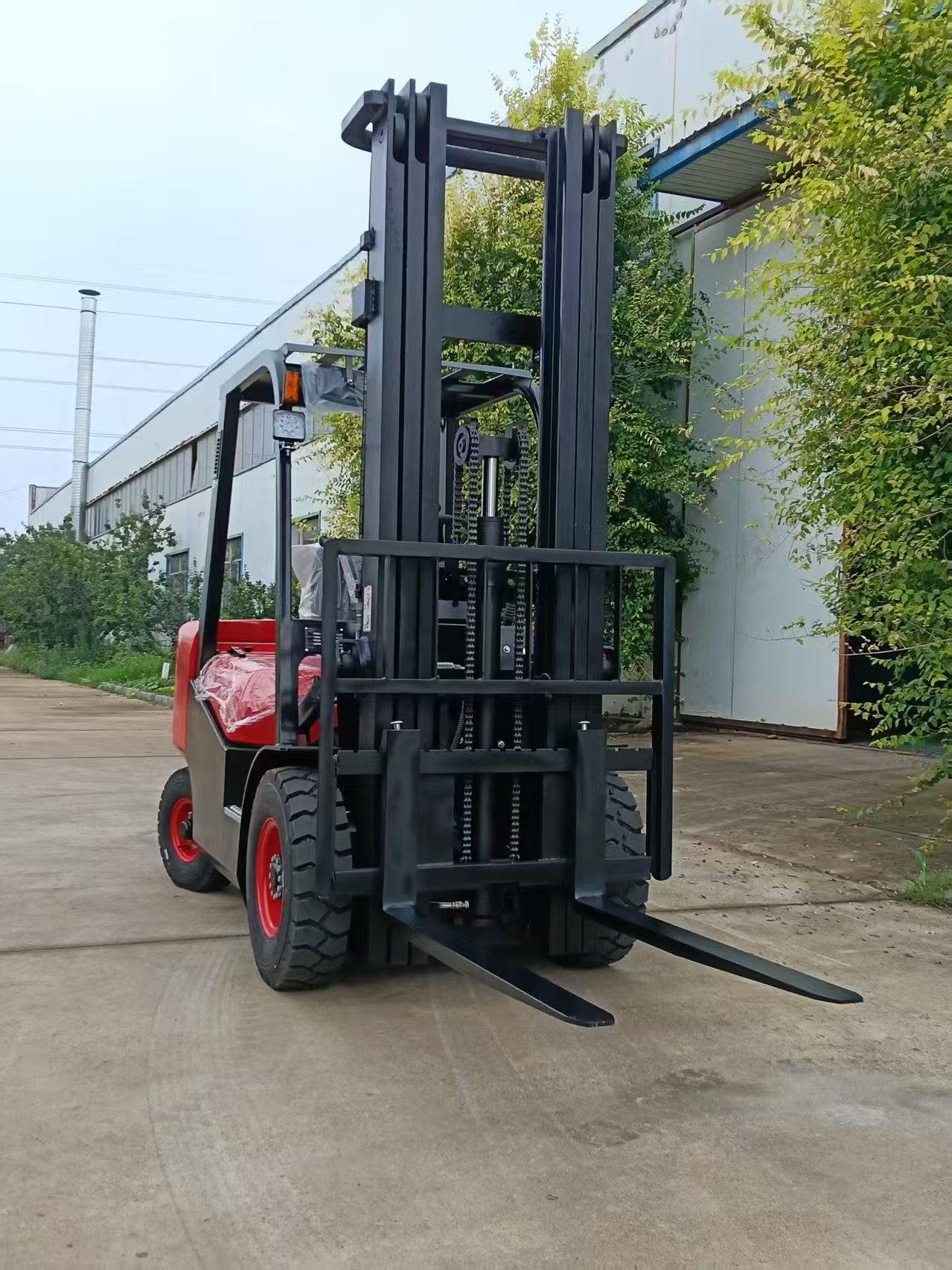

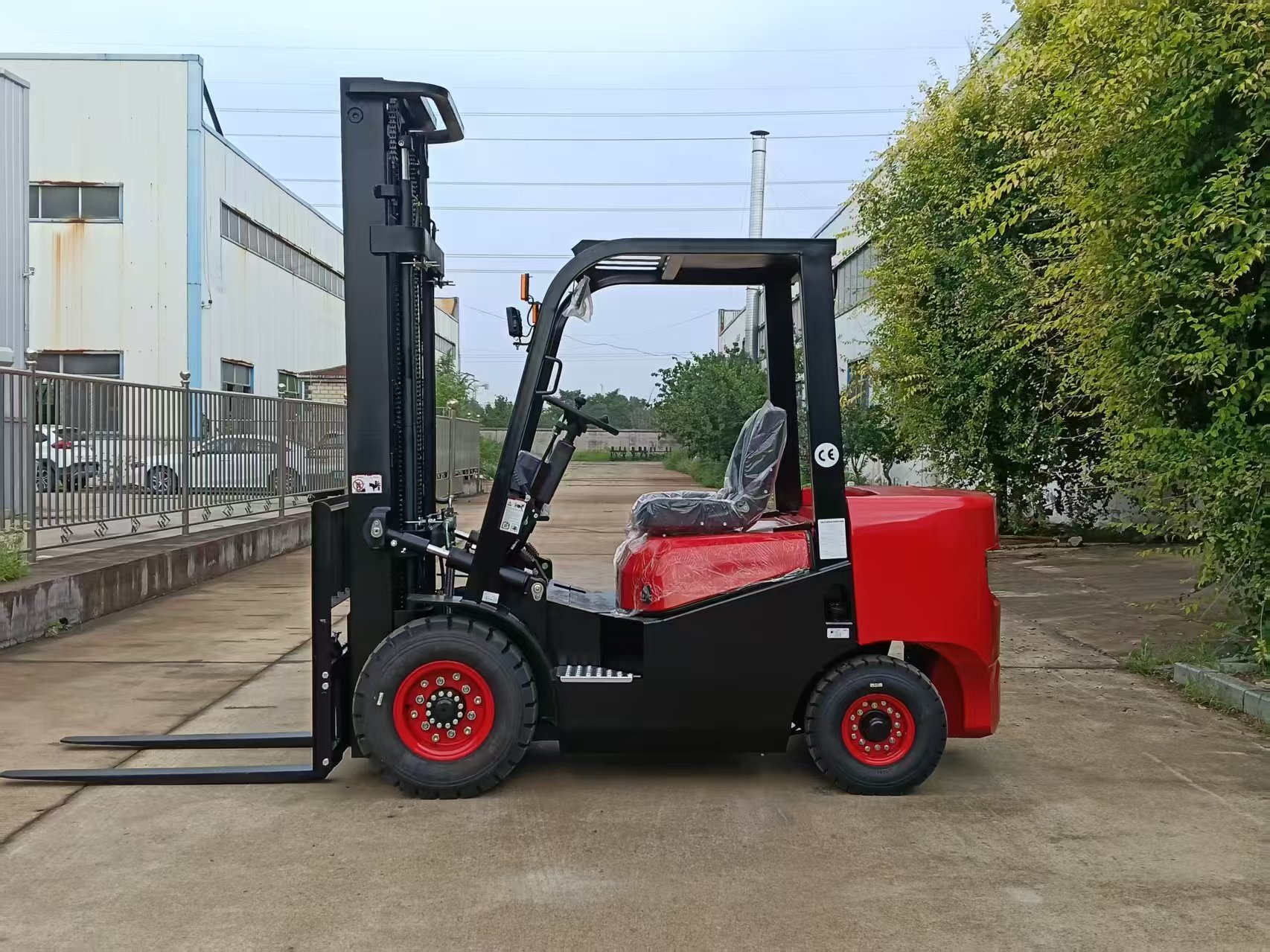

The 5-ton diesel counterbalance forklift is a heavy-duty material handling machine with a rated load capacity of 5000kg. It is widely deployed in manufacturing plants, logistics yards, construction sites, ports and building material markets. Designed for long-hour outdoor heavy-load operations, it handles cargo loading, stacking and short-distance transportation. Optional mast heights, solid tires and side shifters are available to match diverse working demands.
Main Advantages
✅ Strong continuous powerEquipped with reliable diesel engine featuring high low-speed torque and excellent gradeability. Refueling takes only minutes to resume operation, supporting nonstop heavy-duty work without charging downtime.✅ Robust structure & superior stabilityHeavy-duty reinforced chassis and mast deliver outstanding load stability when lifting heavy goods. Wear-resistant tires offer great impact resistance and reliable traction on cement, gravel and uneven ground.✅ User-friendly operation & wide visibilityErgonomic control layout enables flexible steering. Wide-view mast ensures operators clearly see forks and loads to avoid accidents. The shock-absorbing seat reduces fatigue during long shifts.✅ Easy maintenance & cost efficiencyOptimized component layout simplifies daily inspection and service. Proven powertrain ensures low failure rates. Compared with larger capacity models, it provides a cost-effective solution for medium & heavy material transport.✅ High versatilityCompatible with various attachments to handle steel, stone, machinery parts and palletized heavy cargo. It serves as an essential handling equipment for construction, logistics and manufacturing sectors worldwide.
| Item | Specification |
|---|
| Model | SH240-8 |
| Operating weight | 5000 kg |
| Load Center | 500 mm |
| Power Type | Diesel |
| Max. Lifting Speed (Full-Load) | 330 mm/s |
| Max. Driving Speed (Full-Load) | 22 km/h |
| Max. Towing Capacity (Full-Load) | 15.5 kN |
| Gradeability (Full-Load / No-Load) | 15/20 % |
| Lifting Height (H1) | 3000 mm |
| Free Lift Height | 150 mm |
| Min. Turning Radius | 49.8 kPa |
| Displacement | 3.168 L |
| Type of Power Shift | Mechanical/Hydraulic |
| Shift (Forward/Reverse) | 1/1 |
| Fuel Tank Capacity | 70 L |
| Battery Capacity | 12V/80Ah |
| Curb Weight | 5500 kg |
