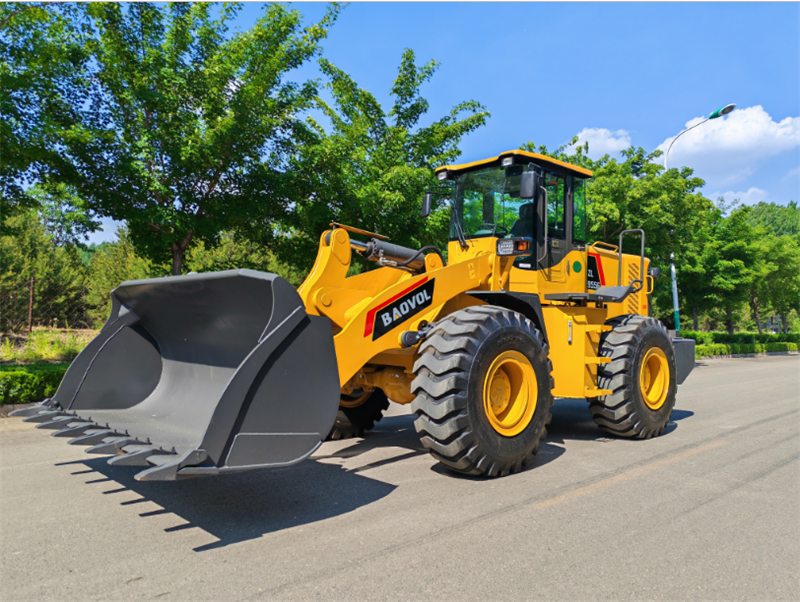

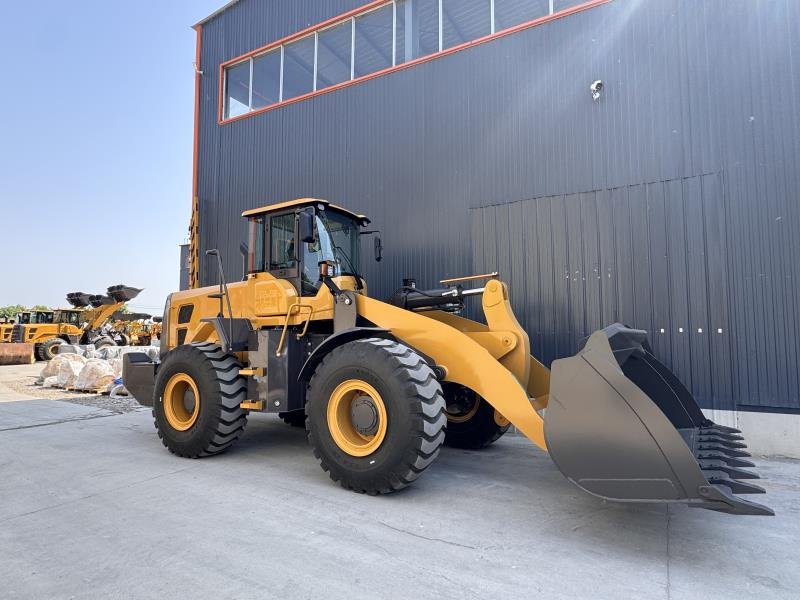

The ZL955F wheel loader is a 5-ton heavy-duty loader designed for quarrying, mining, construction, aggregate handling and industrial material loading.
The machine combines a 5,000 kg rated load, 3 m³ bucket and 162 kW power output. Reinforced drive axles and optimized axle-load distribution improve durability when working on uneven roads, gravel surfaces and high-load jobsites.
Its enclosed low-noise cab is equipped with air conditioning, while wide radial tires help improve load capacity and flotation on soft or muddy ground.
Quarries, mines, aggregate plants, concrete batching plants, ports, coal yards, road construction and large earthmoving projects.
| Item | Specification |
|---|---|
| Model | ZL955F |
| Rated load | 5,000 kg |
| Rated bucket capacity | 3 m³ |
| Rated power | 162 kW |
| Rated speed | 2,000 rpm |
| Overall dimensions | 8,080 × 2,980 × 3,420 mm |
| Dumping height | 3,150 mm |
| Dumping reach | 1,250 mm |
| Wheelbase | 3,250 mm |
| Bucket width | 2,950 mm |
| Maximum traction force | 145 kN |
| Maximum breakout force | 175 kN |
| Maximum gradeability | 28° |
