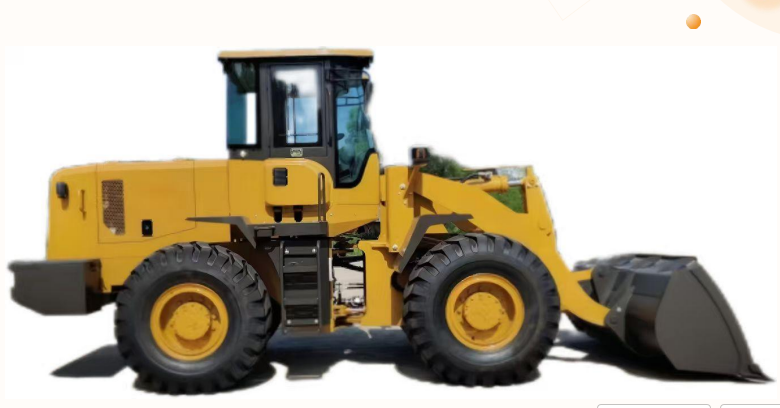

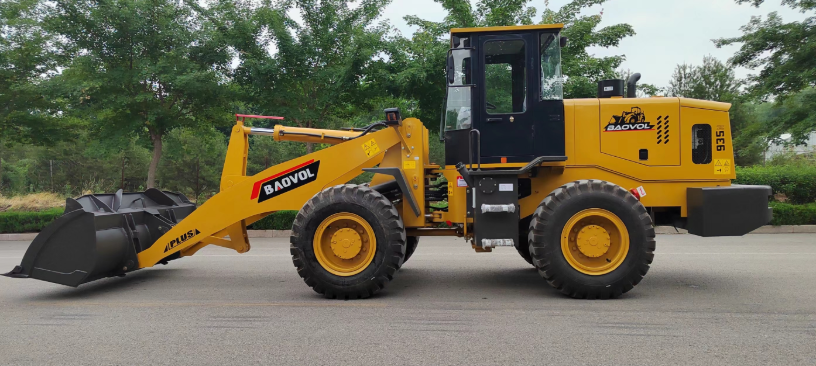

The ZL935 wheel loader is a 3-ton material-handling machine suitable for construction sites, aggregate yards, farms, warehouses, concrete plants and municipal projects.
Its welded heavy-duty frame, reinforced drive axles and long-wheelbase design provide stable operation during loading, transport and stockpiling. A 1.9 m³ bucket and 92 kW rated power support efficient handling of soil, sand, gravel and other bulk materials.
The cab can be equipped with a reversing camera, LED work lights and an optional 360-degree camera system.
Sand and gravel yards, construction sites, municipal projects, farms, feedlots, concrete plants, warehouses, coal yards and general bulk-material loading.
| Item | Specification |
|---|---|
| Model | ZL935 |
| Rated load | 3,000 kg |
| Operating weight | 10,700 kg |
| Bucket capacity | 1.9 m³ |
| Rated power | 92 kW |
| Rated speed | 2,000 rpm |
| Overall dimensions | 7,560 × 2,520 × 3,200 mm |
| Maximum travel speed | 39 km/h |
| Wheelbase | 2,880 mm |
| Wheel track | 1,850 mm |
| Breakout force | 98 kN |
| Traction force | 101 kN |
| Minimum turning radius | 6,110 mm |
| Total cycle time | 9.2 seconds |
| Steering angle | 38° |
| Gradeability | 30° |
| Dumping height | 4,500 / 5,500 mm |
| Dumping reach | 1,010 mm |
